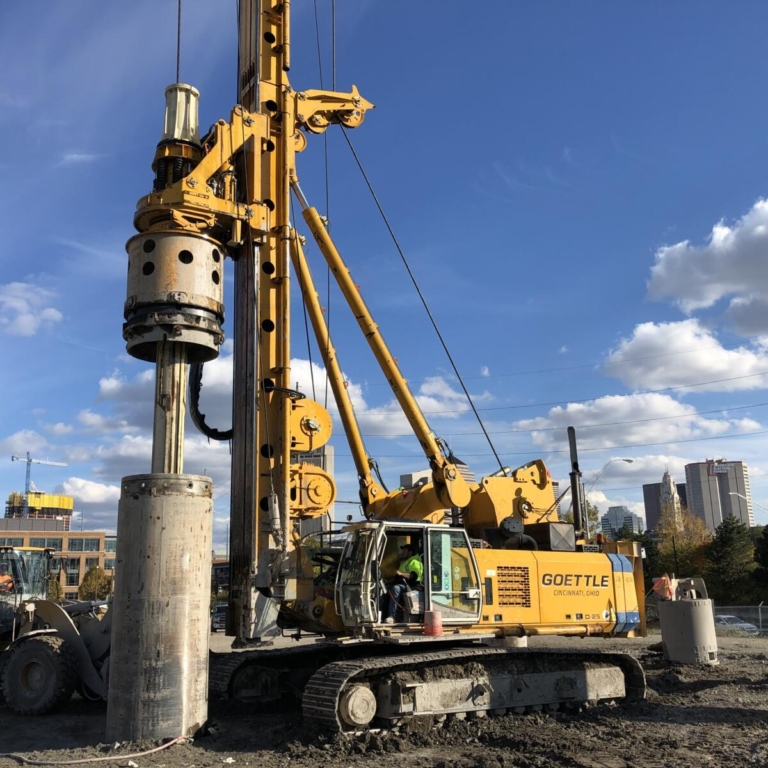

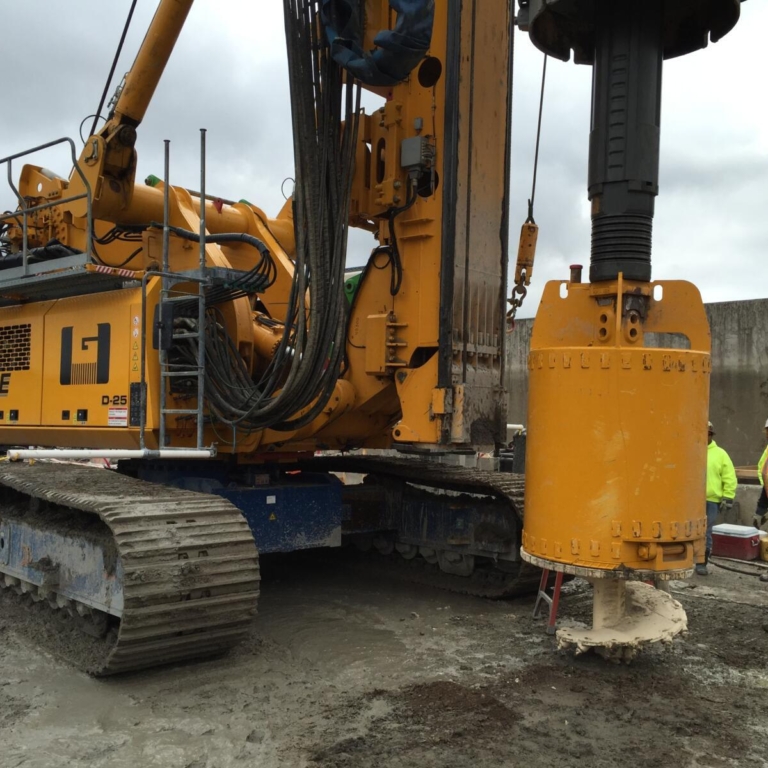

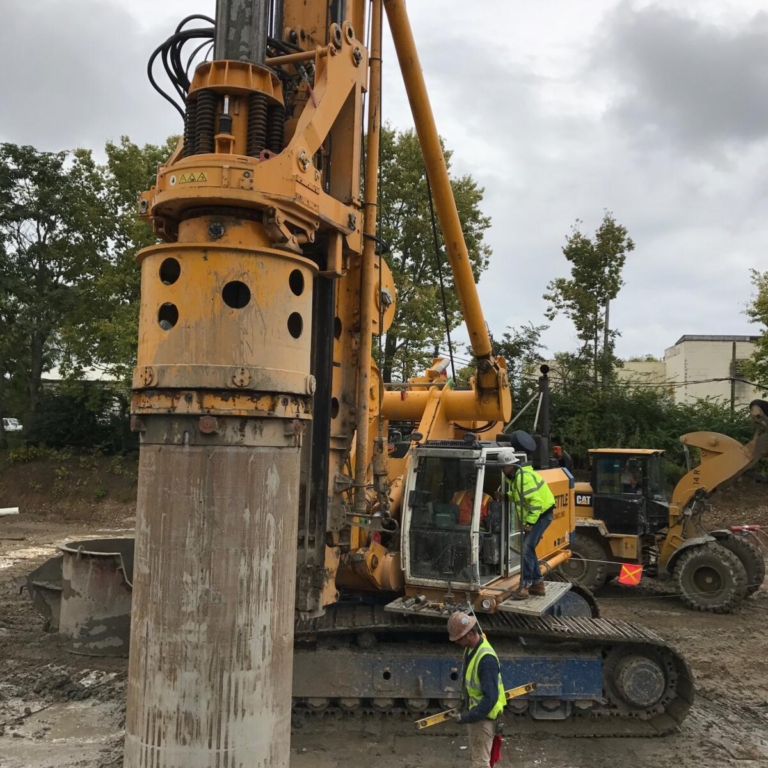

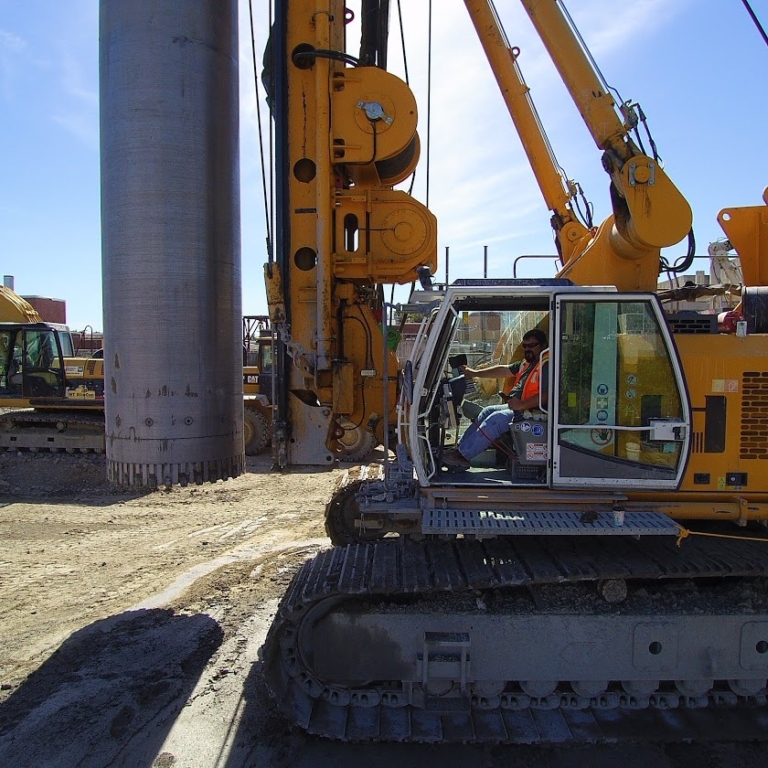

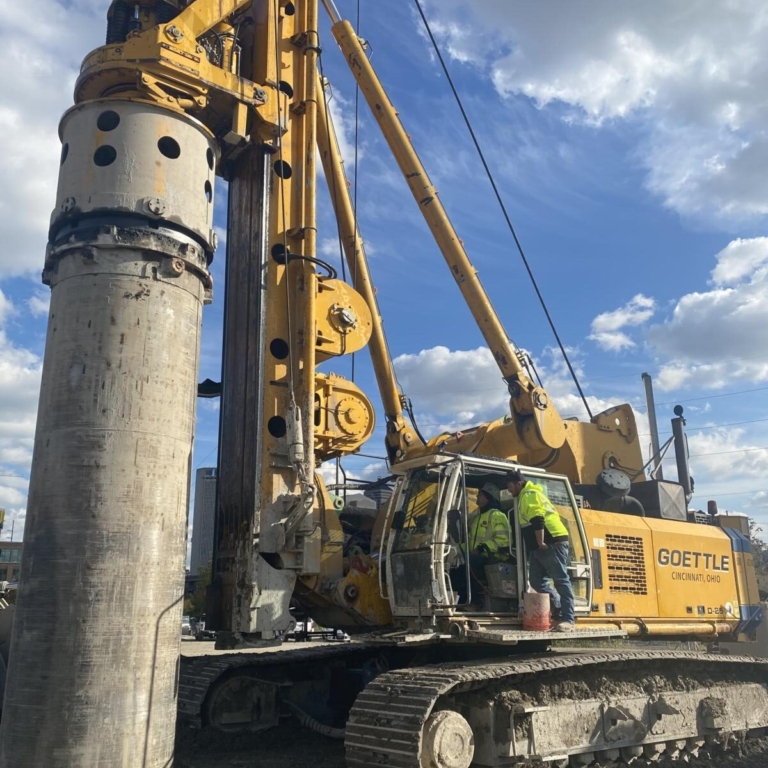

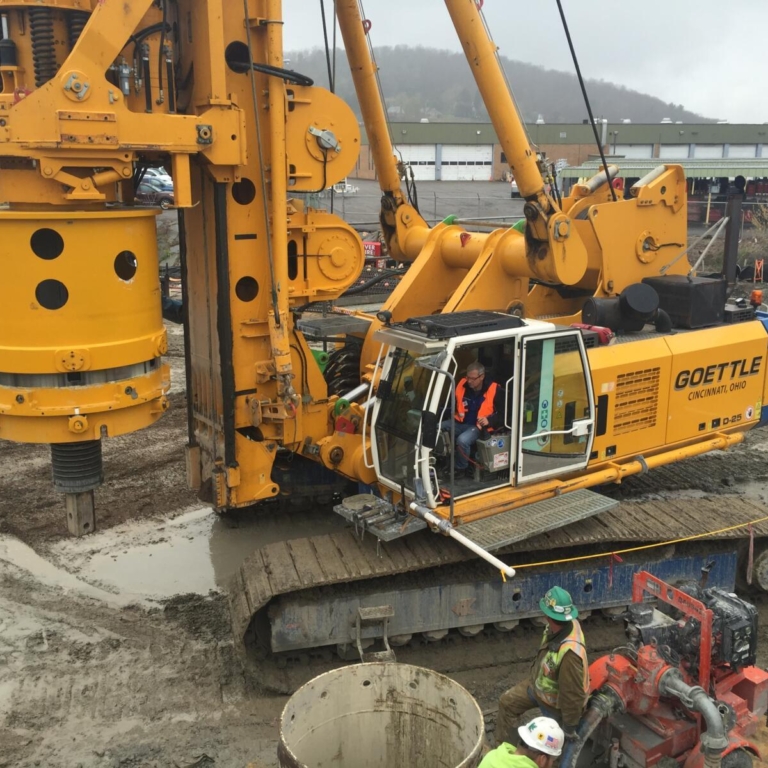

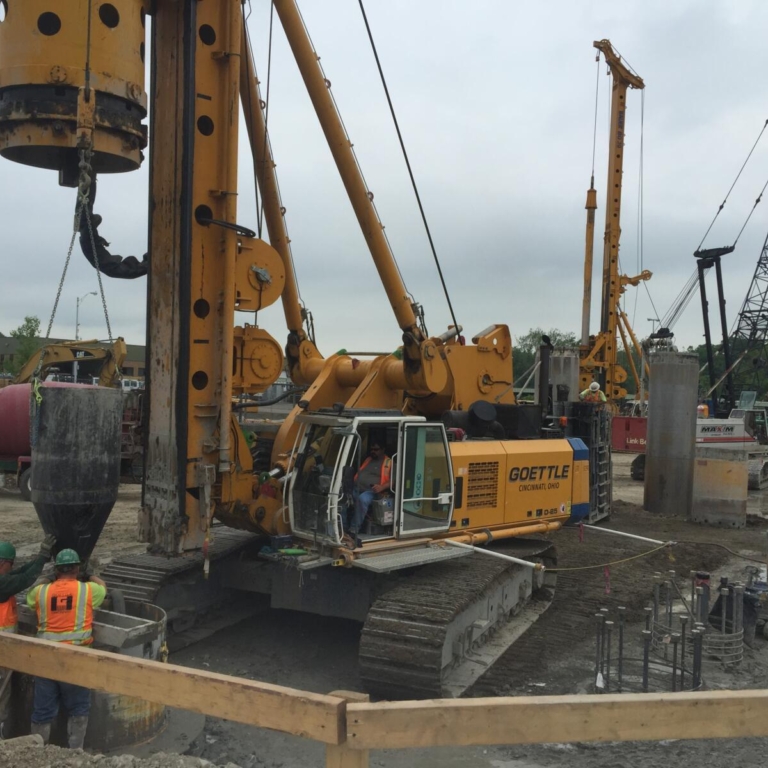

BAUER BG 40
Overview
B-Tronic software packages for Kelly, CFA and FDP
BS 100 with CAT C15 engine 433 kW Tier 3
KDK 390S with 390 kNm of torque
KDK has the BAUER Auto Casing kit installed (Brake pads, hydraulics and electrical)
46 ton crowd winch
40 ton main winch
14 ton auxiliary winch
UW 130 C under carriage
Kelly bar BK40/470/3/36
Drill Axis 1300 mm and 1550 mm extension
Drill Axis extension 2000 mm could be purchased as an option from ECA
Max drilling diameter in Kelly mode 8' cased and 2.80 meter uncased or 12' with the optional drill axis 2000 mm
2 x 4 m mast extensions
Additional 10t counterweight (total counterweight 36.2 ton)
Concrete line on upper carrier and mast
Concrete Volume sensor installed to measure grout strokes
It does have the Leffer oscillator steel connection
| Year | 2012 |
| Hours | 11,145 |
$800,000 USD
