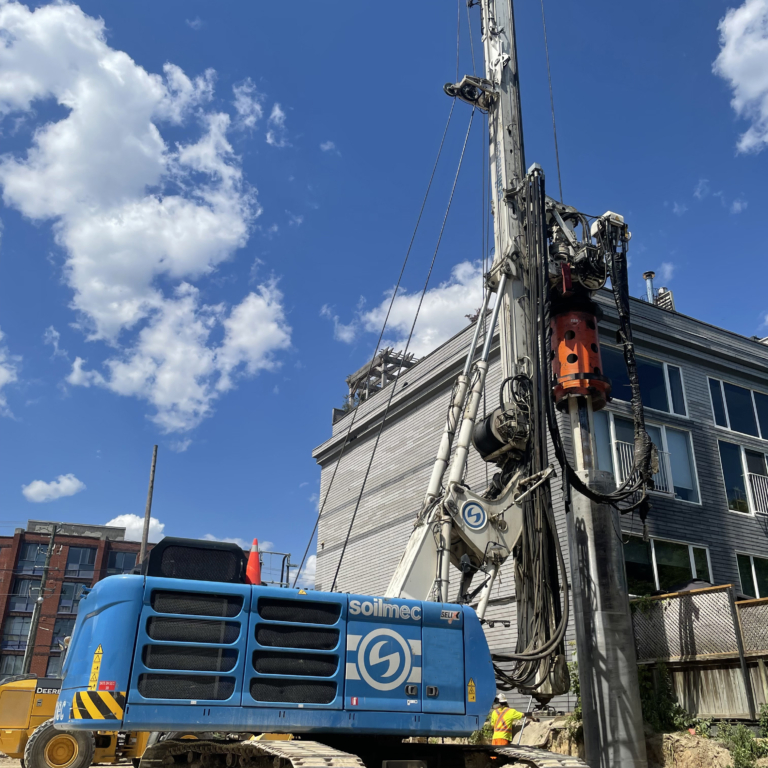

Soilmec SR 75 (2019)

UNDERCARRIAGE: Specially designed for heavy-duty applications that require low ground pressure which reflects in a better turning capability and less ground disturbance. The undercarriage mounted on Soilmec rig allows reducing maintenance costs and downtime in your job site.

UPPER STRUCTURE: The Soilmec-own turret enables operation in restricted space thanks to its small swing radius. All winches are mounted inside the main structure to allow a direct view from the operator’s cabin.
Swing ring for 360° rotation with double-row ball bearing, external teeth and planetary gearbox.

KINEMATICS MECHANISM BETWEEN MAST AND UPPER STRUCTURE: The design of the mechanism allows changing the working radius and quick rig set-up in safety and security conditions for all person involved in the operations.

Features:

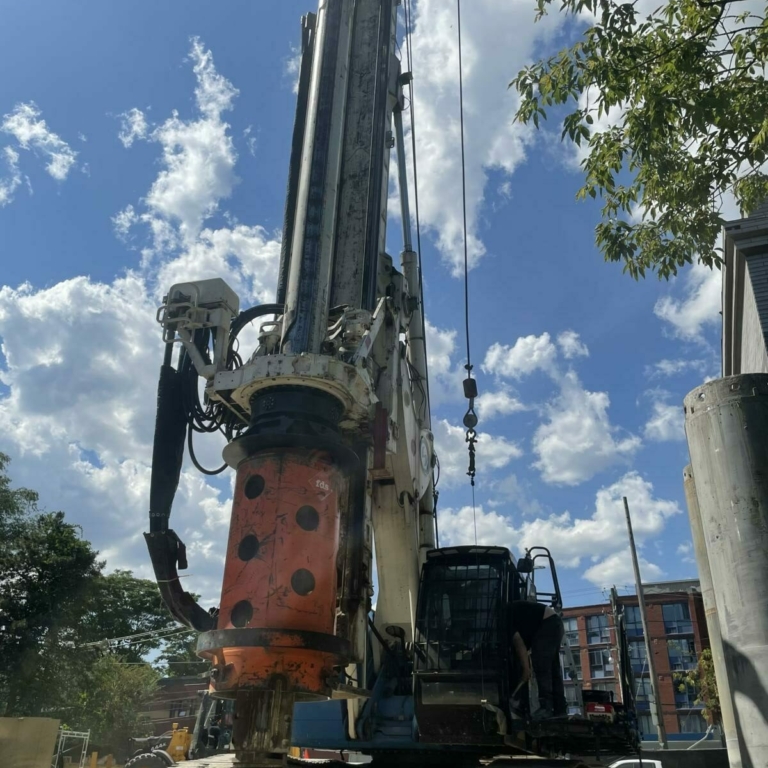

Model RD 280 Rotary Head w/ Cardanic Joint Adapter for German CDA & High-Speed Spin-Off

-4 x 10.5m Kelly Bar w/ 200mm Stub (37.4m Max Drilling Depth)

-Upper Kelly Guide

-Remote Control

-3.1m Mast Extension w/ Automatic Folding System (folding system for transport - drawing shown on bottom of page 20)

-Mechanical Connection for Casing Oscillator

-Hydraulic Mast Foot

Location: Toronto, ON, CA
